Bi-Polar Battery

Your Professional Bi-Polar Battery Manufacturer!

Fujian Yaheng Power Technology Group Co., Ltd established in 1997, covers an area of 224000 m2. Yaheng Power is a professional sealed lead-acid battery and lead-acid battery machinery manufacturer. Yaheng Power Technology Group Co., Ltd is ISO9001, ISO 14001 certified company.We're known as one of the most professional bi-polar battery manufacturers and suppliers in China.

First 12 Last 1/2

Why Choose Us

R&D capabilities
There are 30 employees, some of whom have more than 30 years of experience in the battery industry, and have established a battery material laboratory in cooperation with a famous American university research and development institution. Yaheng has developed different chemical formulas according to the application.

Advanced equipment
With Yaheng automation equipment, Yaheng was the first in China to produce cast-welded batteries, combining mechanical equipment with material technology to shorten the battery development cycle.

Wide product lines
Yaheng batteries meet international standards and have a complete UPS, solar power generation system, telecommunications power system, motorcycle and electric vehicle product line, more than 300 models, 2V, 4V, 6V, 8V, 12V, 16V, 24V and 1.2AH~3000AH.

Accept ODM/OEM service
Our team of experts will work closely with you to understand your needs and will provide solutions that are tailored to meet your expectations.

Advantages of bi-polar battery

Higher energy density

One of the main advantages of bi-polar battery is their higher energy density, which means they can store more energy in a smaller space. This is achieved by eliminating the need for a separate current collector, which reduces the weight and volume of the battery.

Faster charging and discharging

Another advantage of bi-polar battery is that they are able to charge and discharge faster than traditional battery designs. This is because the shared electrode provides a more direct path for ions to flow, which reduces the resistance in the battery and enables faster charging and discharging.

Lower battery production costs

Bi-polar battery also have the potential to reduce battery production costs. Bipolar batteries do not require separate current collectors, so the number of components required for the battery is reduced, which reduces the overall production cost.

Enhanced safety features

Safety is a critical aspect of battery technology, and bi-polar battery come with enhanced safety features compared to traditional batteries. The stacked electrode design inherently improves safety by reducing the risk of short circuits and thermal runaway.

Application of Bi-polar Battery

Electric vehicles
One of the most prominent applications of bi-polar battery is in the electric vehicle (EV) industry. The higher energy density and improved power output of bi-polar battery make them an excellent choice for powering electric vehicles. With their ability to store more energy in a compact space, EV equipped with bi-polar battery can achieve longer driving ranges.

Portable electronics
The demand for longer battery life and improved performance in portable electronics has driven the adoption of bi-polar battery in this sector. Smartphones, tablets, laptops, and wearables all benefit from the higher energy density of bi-polar battery, allowing for longer usage times between charges.

Energy storage systems
Bipolar batteries are also making significant contributions to the field of energy storage systems. These systems are essential for enabling efficient energy management in renewable energy sources, such as solar and wind power. Bi-polar battery facilitate the storage of excess energy generated during periods of high production, allowing for its later use during times of low production or high demand.

Parameter

Cells Per Unit	6
Voltage Per Unit	12
Capacity	7AH@10hr-rate to 1.8V per cell @ 25℃
Weight	Approx.2.0 kg (Tolerance±3%）
Max. Discharge Current	72 A(5sec)
Internal Resistance	Approx 28 mΩ
Operating Temperature	Discharge: -20℃~50℃ Charge: 0℃~40℃ Storage: -20℃~50℃
Normal Operating Temperature	25±3℃
Float Charging Voltage	2.25 to 2.27 VDC/unit Average at 25℃
Maximum Charging Current	2.10A
Equalization and Cycle service	2.35 to 2.40 VDC /unit Average at 25℃
Terminal	Terminal: F1/F2

Maintenance of Bi-Polar Battery

Avoid extreme temperatures

Store the battery in a cool, dry place away from direct sunlight and heat sources.

Charge Regularly

Don't let the battery completely drain before recharging.

Partial charge is better

Consider charging to 80% capacity instead of 100% whenever possible.

Use the correct charger

Always use the manufacturer-recommended charger to ensure proper charging voltage and current.

How bi-polar battery work

The principle of operation of a bipolar battery is quite simple—in theory. One cell’s negative electrode and another cell’s positive electrode are located very close to each other (back-to-back). The cathode and anode are both coated on the substrate. The substrate with electrodes acts as a seal for the adjacently placed cells. Electrical current flows between cells directly through both electrodes and the thin, intermediate conductive substrate. Intermediate jumpers between neighbor cells are unnecessary in this case. The cells are placed in a common container. One or more containers are united into battery modules. See below for a schematic of a bipolar electrode module.

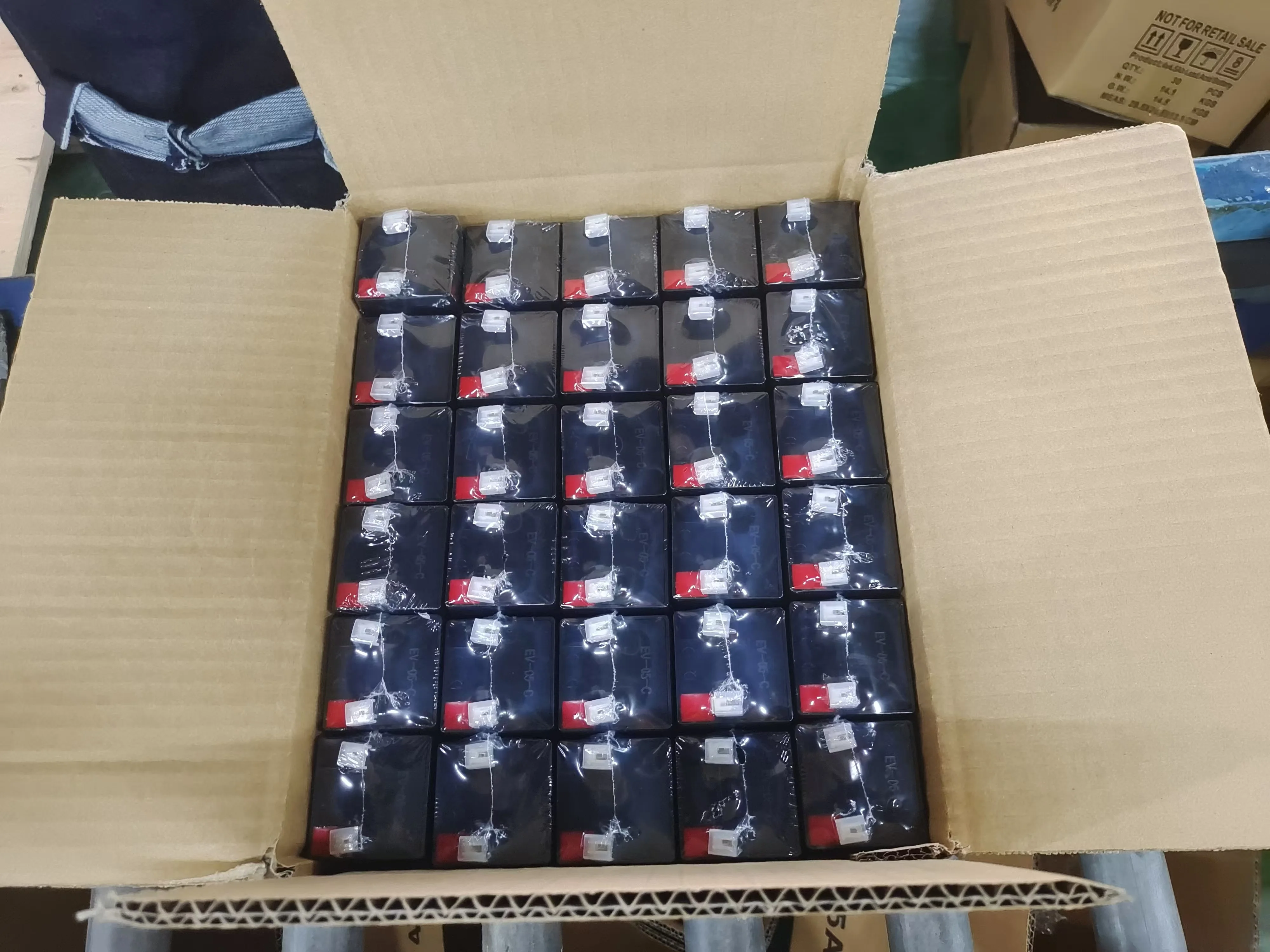

Packaging and Shipping

Our Certificates

FAQ

Q: Are you trading company or manufacturer?

A: We are professional manufacturer specialized in lead acid battery. And we trade our products with our clients directly.

Q: Can you do OEM and ODM?

A: Yes, OEM and ODM are both acceptable.

Q: When can I get the price?

A: Usually we quote within 24 hours after we get your inquiry.

Q: How long is your delivery time?

A: The general delivery time is 30-45 days after receiving your order confirmation. Anther, if we have the goods in stock, it will only take 1-2 days.

Q: Do you have the test and audit service?

A: Yes, we can assist to get the designated test report for product and the designated factory audit report.

Q: What’s is your shipping service?

A: We can provide services for vessel booking, goods consolidation, customs declaration, shipping documents preparation and delivery bulk at the shipping port.

Q: What’s your term of the delivery?

A: Our ordinary delivery term is FOB Xiamen. We also accept EXW, CFR, CIF

Q: What’s your after-sale service?

A: Our quality warranty period is made according to items and applications.

Q: What are bipolar batteries?

A: A bipolar battery is one in which the current collector for each cell is shared by the anode and the cathode. A Toyota illustration shows the anode and cathode materials coated on opposite sides of the collector in each cell.

Q: What is the difference between unipolar and bipolar battery?

A: In unipolar: the current always flows in the same direction. Each coil is dedicated to one current direction, meaning either the coil A+ or the coil A- is powered. The coils A+ and A- are never powered together. In bipolar: the current can flow in both directions in all coils.

We're well-known as one of the leading bi-polar battery manufacturers and suppliers in China. Please feel free to buy high quality bi-polar battery for sale here from our factory. For customized service, contact us now.
